Slide 17 of 19

Notes:

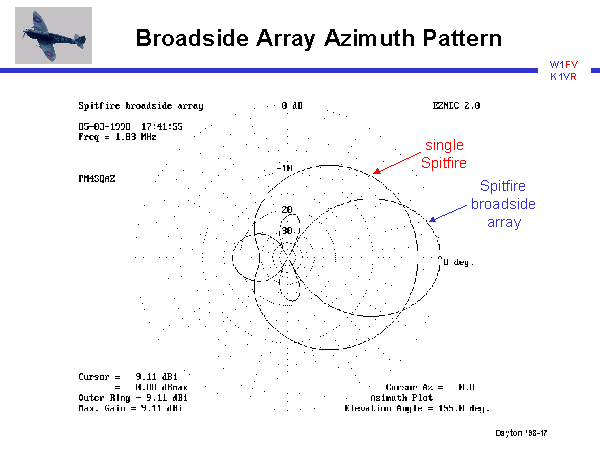

The computed azimuth pattern of the broadside array (at 25 degrees elevation) is shown and compared to the single Spitfire. A consequence of the increased gain is the narrowing of the forward lobe. Rejection off the sides of the array also increases significantly, with some minor lobes remaining to the sides and rear.
